Self priming pump 1HP
$118.54
24 people are viewing this right now
Guaranteed safe & secure checkout
Description
Reviews (0)
Questions
Description
Model : RH-4023Â Â (NA)
DESCRIPTION
FEATURES

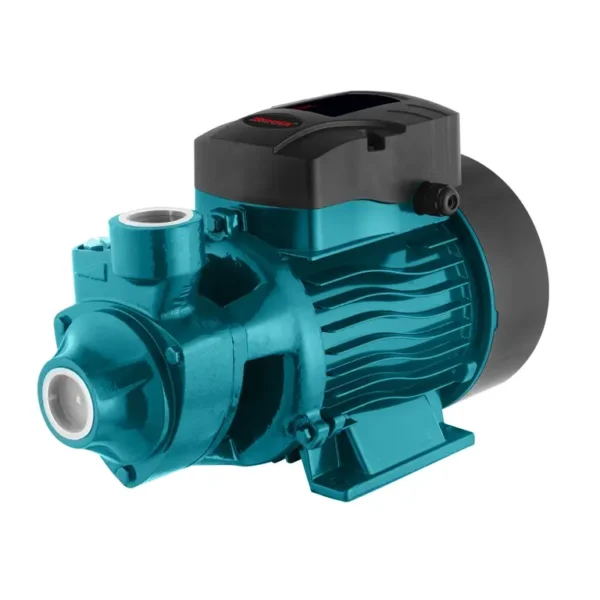

Peripheral pump with compact dimensions and capable of generating high heads
Suitable for clean water and free of solids and abrasives, non-viscous, nonaggressive, non-crystallised and chemically neutral, clean liquids
Properly in domestic, small industrial,irrigation of gardens and allotments usage
Provides with Thermal protector and insulation Class B to ensure motor long life
ability for suction up to8 m
More efficiency by using Ceramic/Graphite mechanical seal, brass impeller cast iron pump housing
Suitable for clean water and free of solids and abrasives, non-viscous, nonaggressive, non-crystallised and chemically neutral, clean liquids
Properly in domestic, small industrial,irrigation of gardens and allotments usage
Provides with Thermal protector and insulation Class B to ensure motor long life
ability for suction up to8 m
More efficiency by using Ceramic/Graphite mechanical seal, brass impeller cast iron pump housing
SPECIFICATION
| Model | RH-4023 |
| Power | 1.0HP |
| Voltage | 220V |
| Frequency | 50Hz |
| Min.Flow | 0.6m³/h |
| Max. Flow | 2.88m³/h |
| Min.Head | 3m |
| Max. head | 65m |
| Inlet/outlet port diameter | 1X1 In |
| Suction height | 8m |
| Speed | 2850RPM |
| Max. liquid temperature | ℃60 |
| Working Pressure | 6.5Bar |
| Protection level | IP44 |
| Max. Ambient temperature | ℃40 |
| Insulation Class | B |
| Pump housing material | CAST IRON |
| Motor housing material | ALUMINUM |
| Mechanical seal material | Ceramic/Graphite |
| Motor protection | WITH |
| Coil winding material | COPPER |
| Impeller material | BRASS |
| shaft material | 316+45 |
| Weight | 9.9Kg |
| Supplied In | color box |
